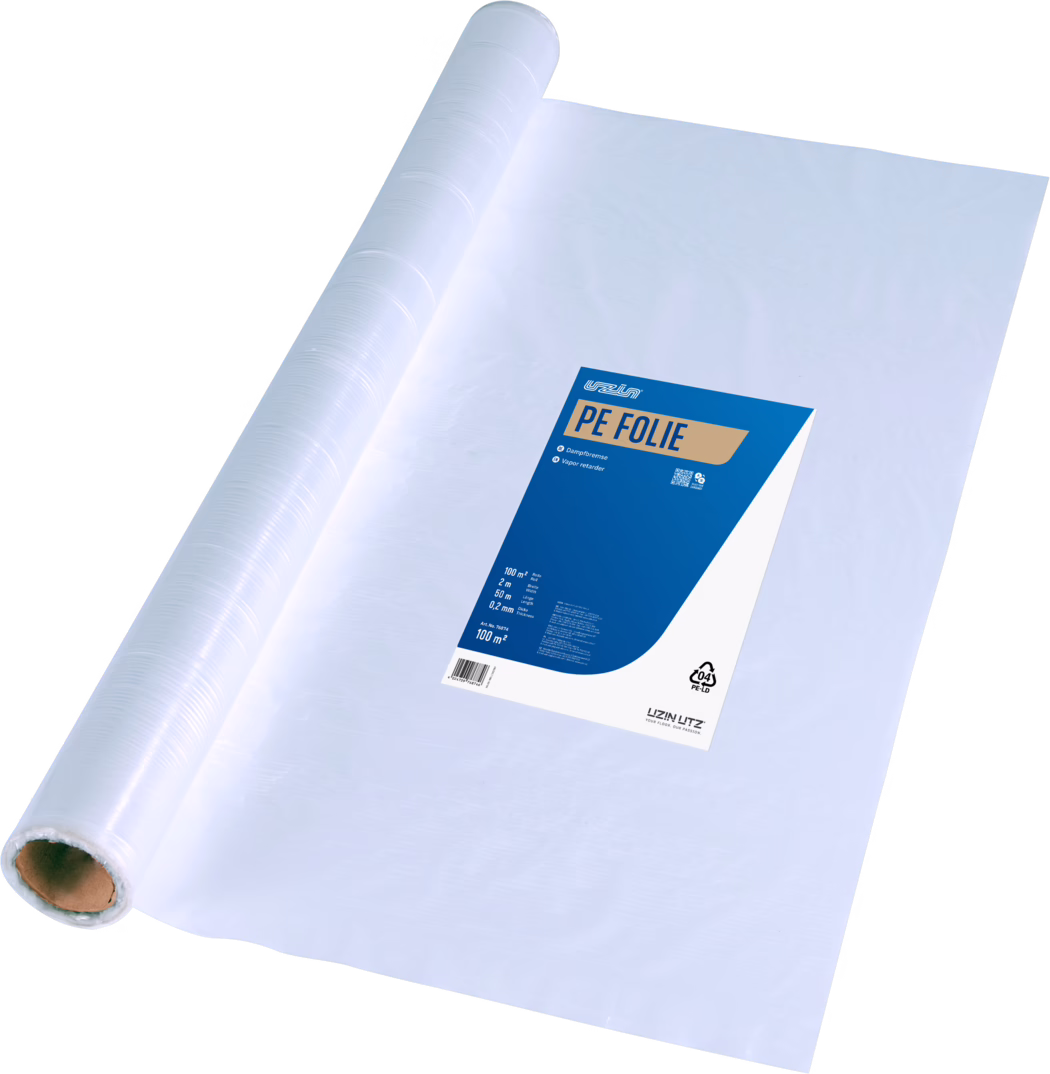

UZIN PE Foil Moisture Barrier
Crease-free, 200 μm PE moisture barrier under unbonded constructions
- 2 m sheet width, crease-free
- easy to install
- high sd value
- for use as a cover film
Applications
Main application area:
- moisture barrier under unbonded floor constructions, e.g. UZIN RenoTop PLUS
- composite layer under screeds
Downloads
Technical data
| Packaging | sheets in rolls |
|---|---|
| Sizes | 2.0 m x 50 m = 100 m² |
| Shelf life | min. 24 months |
| Color | transparent |
| Roll weight | approx. 20 kg (netto) |
| Thickness | approx. 0.2 mm |
| Heat transfer resistance | approx. 0.0005 m²K/W (R)*** |
| Minimum application temperature | 10 °C at ground level and 3 °C above dew point |
| SD value | ≥ 100 m ** |
| Tensile strength longitudinal / transverse | ≥ 26 N/mm² * |
| Elongation at break lengthwise / crosswise | ≥ 400 % / ≥ 600 % * |
| Breite | 2 m |
Ordering information
| Article number | Shipping unit |
|---|---|
| 76874 | Pallet : 48 |
