Laying on damp floor without measuring the residual moisture UZIN Renoplan®: Systematic renovation without residual moisture measurement
The UZIN Renoplan® system for laying on damp subfloors offers an innovative solution for laying floor coverings on damp subfloors - without the need for residual moisture measurement.
How do you install on a damp floor without measuring the residual moisture? With the UZIN Plurafilm Hydro and the UZIN Renoplan® System
The UZIN Renoplan® systemenables floor coverings to be laid on damp substrates without measuring residual moisture. Thanks to the combination of, for example, UZIN PE 360 PLUS , UZIN NC 161 and UZIN Plurafilm Hydro, a reliable moisture barrier is created for the installation of floor coverings, even on damp screed or concrete.UZIN PE 360 PLUS and UZIN 161 also provide the ideal basis for laying on damp floors when used individually.
As an adhesion promoter for UZIN NC 161, UZIN PE 360 PLUS reduces the absorbency of the substrate. UZIN NC 161 ensures a moisture-resistant and reliable surface as well as fast drying. Finally, UZIN Plurafilm Hydro forms a water vapor barrier layer that prevents moisture from penetrating the floor covering. This keeps the substrate reliably dry and ready for installation, without any additional measurements.

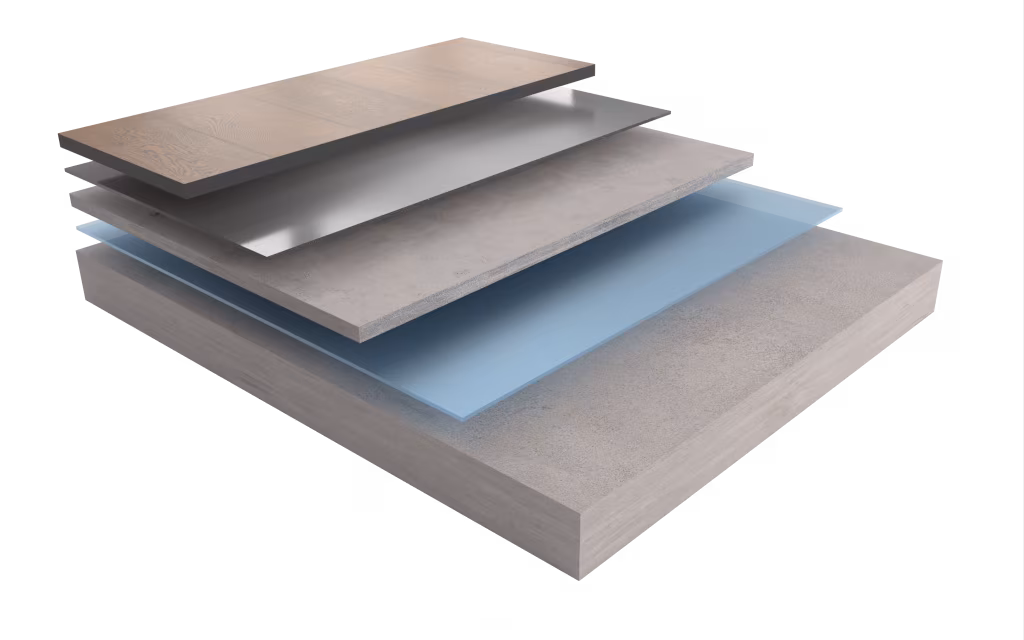

- Moisture-Barrier Dry Adhesive
- UZIN Plurafilm Hydro
- Floor Smoothing Compound
- UZIN NC 161
- Primer
- UZIN PE 360 PLUS
- Subfloor
Product information
UZIN Plurafilm Hydro Double-sided self-adhesive vapour barrier
Moisture-barrier dry adhesive for PVC/CV flooring, PVC design coverings, rubber floor coverings and tufted textile coverings on concrete or UZIN NC 161
- Quick and easy…
UZIN NC 161 Moisture-tolerant, commercial cement levelling compound
Self-levelling floor smoothing compound on all standard building substrates and in MT systems on damp, cementitious substrates for layer thicknesses from 3 - 20 mm
- no…
UZIN PE 360 PLUS Ready Mixed Primer
Moisture tolerant dispersion-based primer for absorbent substrates, screeds and concrete
- ready mixed
- sprayable
- tolerant against alkaline moisture
- rapid drying
- reduces the…
Advantages of the system
- Effective sealing of damp screed and concrete without residual moisture measurement.
- Ideal for laying design coverings, PVC, rubber and tufted textile coverings in sheets and tiles.
- Self-adhesive for easy application.
- High resistance to alkaline moisture.
- Easy application with an ergonomic roller application.
- Comprehensive protection against moisture for all floor coverings, even on damp screed.
Over 250,000 satisfied craftsmen in more than 25 countries rely on UZIN systems
Processing film: Laying on damp floor without measuring the residual moisture
Watch our video to see how you can achieve perfect results with the UZIN Renoplan® system for laying on damp floors without measuring residual moisture.
Step-by-step instructions for installation The UZIN Renoplan® system in use
Step 1: Sanding the substrate
Start by sanding the substrate with the WOLFF Samba to remove layers that reduce adhesion or are unstable and to create an even, smooth surface for subsequent coats.
Step 2: Cleaning and vacuuming the substrate
Vacuum the substrate thoroughly with the WOLFF VACUCLEAN 2 industrial vacuum cleaner to ensure a clean surface for subsequent application.
Step 3: Priming the substrate with UZIN PE 360 PLUS
Apply UZIN PE 360 PLUS evenly and completely with the UZIN Nylon Plush Roller and the codex X Spray. Avoid the formation of puddles. This primer reduces absorbency and creates a strong bonding surface.
Step 4: Attaching edge insulation strips
Apply edge insulation strips to avoid sound bridges and ensure decoupling of the substrate.
Step 5: Filling the substrate with UZIN NC 161
Use UZIN NC 161 to smooth out unevenness and create a moisture-resistant surface.
Step 6: Bonding the floor covering with UZIN Plurafilm Hydro
Bond the floor covering with UZIN Plurafilm Hydro, a moisture-barrier dry adhesive that provides reliable adhesion and makes the floor immediately walkable and loadable.
UZIN Plurafilm Hydro
UZIN Plurafilm Hydro is a moisture-barrier dry adhesive developed for laying PVC, CV and rubber flooring as well as tufted textile flooring on damp substrates. This product eliminates the need for moisture measurement, which simplifies the installation process. It provides a reliable barrier against moisture and ensures an ideal foundation on unheated and heated subfloors, even with residual moisture without limitation.
Thanks to fast drying, the floor covering can be walked on immediately after installation and can be welded or grouted immediately. UZIN Plurafilm Hydro is resistant to alkaline moisture, free of hazardous substances and therefore an environmentally friendly solution for renovations. It enables fast and durable installation, even under difficult conditions.
Fast, efficient, Renoplan® system
The UZIN Renoplan® system offers tailor-made solutions for demanding renovation projects that are perfectly coordinated. Regardless of whether you are dealing with damp-proofing or laying design flooring on damp, soiled and new mineral substrates - with UZIN you benefit from a system that saves time and eliminates the need to measure residual moisture. Thanks to the special system combination of UZIN PE 360 PLUS and UZIN NC 161 and UZIN Plurafilm Hydro, a stable and durable base is created that is ideal for laying PVC, rubber and other resilient floor coverings.
With quick application and immediate walkability of the floor covering, the UZIN Renoplan® system offers an efficient, reliable and durable solution. See how you can take your renovations to a new level with UZIN.
Discover more products for substrate renovation with underfloor heating and decoupling - the UZIN Renoplan® system
Samba
Handy, very powerful single-disc sander with a powerful 1,700 W motor for sanding and brushing screeds and fillers as well as for wet cleaning and polishing hard floors.
Vacuclean 2
High-performance industrial vacuum cleaner for coarse dirt and dust with large filter surface
X-Spray Battery sprayer
Ergonomic battery backpack sprayer with variable pressure setting for even application
UZIN PE 360 PLUS Ready Mixed Primer
Moisture tolerant dispersion-based primer for absorbent substrates, screeds and concrete
- ready mixed
- sprayable
- tolerant against alkaline moisture
- rapid drying
- reduces the…
UZIN Foam Expansion Strip 8/100 Foam Expansion Strip
PE foam expansion strip with foil rag, 8 mm thick and 100 mm high
- height 100 mm, thickness 8 mm
- perfectly suitable for underfloor heating systems
- easy to cut because of the…
UZIN NC 161 Moisture-tolerant, commercial cement levelling compound
Self-levelling floor smoothing compound on all standard building substrates and in MT systems on damp, cementitious substrates for layer thicknesses from 3 - 20 mm
- no…
UZIN Plurafilm Hydro Double-sided self-adhesive vapour barrier
Moisture-barrier dry adhesive for PVC/CV flooring, PVC design coverings, rubber floor coverings and tufted textile coverings on concrete or UZIN NC 161
- Quick and easy…
Experience refurbishment on a new level
The UZIN Renoplan® system provides you with everything you need for a successful renovation and effective moisture barrier in the substrate.
At UZIN, you don't just get products, but sophisticated system solutions that make your renovation projects efficient and sustainable. With our many years of expertise, we know exactly what is important when it comes to flooring work. Our diverse product range and sustainable solutions set new standards in flooring installation. Put your trust in UZIN - for quality that makes your refurbishment successful and convinces in the long term with environmentally friendly solutions.
uzin. Perfectly coordinated
Laying on damp subfloors without measuring the residual moisture has never been so easy and saves an enormous amount of time.
Start your renovation now - Contact us
Find out more about how the UZIN Renoplan® system optimizes your renovation and helps you to lay excellent floor coverings even on damp substrates. Let us advise you individually.
