Blocking moisture in the substrate - universal for any floor covering UZIN HydroBlock System: The solution for moisture in the substrate
The renovation of damp subfloors, especially cement screeds or concrete floors, is a tough job - especially when it comes to reliably sealing off moisture and protecting the floor covering at the same time. The UZIN HydroBlock system offers a perfect solution for sealing off moisture in the subfloor - for resilient and textile floor coverings as well as multilayer parquet. With its unique system compatibility and specially developed products, the UZIN HydroBlock system ensures reliable results when waterproofing subfloors, even under difficult conditions.
HOW TO SEAL OFF MOISTURE IN THE SUBFLOOR WITH ANY FLOOR COVERING With UZIN HydroBlock and the Renoplan® System
The key to the renovation of damp substrates and when working on mineral substrates in new buildings is the efficient sealing off of residual moisture. Especially when renovating older screeds, new mineral substrates and concrete ceilings, a moisture barrier is often required to reliably protect the new floor covering from the effects of moisture. With the UZIN HydroBlock system, this can be done easily and efficiently.
The heart of the system is UZIN Hydro LevelStar, a cementitious system levelling compound which, in combination with the system primers UZIN Hydro Primer 1 and 2, achieves a water vapor barrier effect. The interaction of the products makes it possible to renovate even damp or problematic substrates and create a reliable basis for laying resilient and textilefloor coverings or parquet. The fast drying and high resistance to alkaline moisture make the system particularly efficient and reliable when renovating and waterproofing mineral substrates in new buildings.

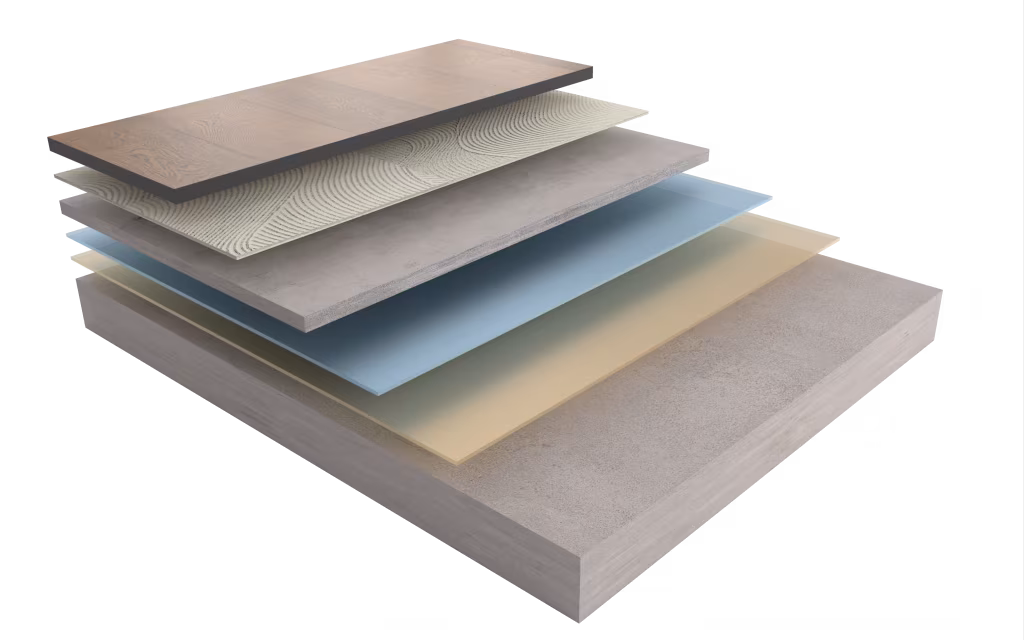

- Surface
- Residual Moisture Barrier System
- UZIN HydroBlock-System
- UZIN Hydro Primer 2
- UZIN Hydro Primer 1
- Subfloor
Product information
UZIN HydroBlock-System Residual moisture barrier system
System for cementitious screeds, concrete in upper floors or concrete slabs wtihout rising moisture with moisture barrier effect
- resistant to alkaline moisture
- ready-to-use…
Advantages of the UZIN HydroBlock system
- Effective moisture barrier for cement screeds and concrete ceilings - ideal for substrates with residual moisture
- Suitable for designer floor coverings, PVC and parquet - provides a long-lasting foundation
- Quick to lay - ready for laying floor coverings and parquet immediately after drying
- High resistance to alkaline moisture, suitable for damp and demanding substrates
- Environmentally friendly solution - user and environmentally friendly alternative to epoxy or polyurethane products
Over 250,000 satisfied craftsmen in more than 25 countries rely on UZIN systems
Processing film: sealing off moisture in the substrate
Watch our video to see how easy it is to seal off moisture in the substrate with the UZIN Renoplan® system and how you can create a basis for the subsequent floor covering installation.
Step by step to successful restructuring The UZIN Renoplan® system in use
A cement screed or concrete substrate (storey ceilings and concrete ceilings without moisture ingress) is a prerequisite for successful installation
Step 1: Sanding the substrate
Start by sanding the substrate to create an even and smooth surface that is optimally prepared for the subsequent steps.
Step 2: Cleaning and vacuuming the substrate
Remove dust thoroughly with the WOLFF VACUCLEAN 2 industrial vacuum cleaner. A clean surface is crucial for the best possible adhesion of primers and a reliable moisture barrier.
Step 3: Priming with UZIN Hydro Primer 1
Apply the first coat of UZIN Hydro Primer 1 evenly with the UZIN Nylon Plush Roller. Avoid the formation of puddles. This primer reduces the absorbency of the substrate and ensures strong adhesion of the subsequent coats.
Step 4: Priming with UZIN Hydro Primer 2
Repeat the process with the UZIN Hydro Primer 2 primer. Make sure that both primers dry for at least 12 hours.
Step 5: Attaching edge insulation strips
Apply the UZIN edge insulation strips to all rising components. This avoids sound bridges and ensures that the substrate is decoupled from the walls to ensure optimum damping and flexibility. Practical aid: UZIN FT 15, which serves as a spacer strip between rooms.
Step 6: Leveling with UZIN Hydro LevelStar
Level the substrate with UZIN Hydro LevelStar, a specially developed leveling compound that ensures a smooth surface. Together with UZIN Hydro Primer 1 and 2, this results in an effective residual moisture barrier system that optimally prepares the substrate for the installation of design flooring, PVC or parquet.
Once the system has been fully applied, design flooring, PVC or parquet can be laid directly and safely.
UZIN Hydro LevelStar
UZIN Hydro LevelStar is a cementitious system levelling compound that has been specially developed to reliably seal off residual moisture in cement screeds and concrete floors. As part of the UZIN HydroBlock system, it offers a water vapor barrier effect and provides a durable basis for the installation of design flooring, PVC or parquet.
Thanks to its high strength and rapid readiness for covering, UZIN Hydro LevelStar enables quick and easy application. It ensures a smooth and safe surface that is also suitable for areas subject to heavy traffic. The easy application and excellent flow make processing even more efficient. In combination with UZIN Hydro Primer 1 & 2, the result is a complete system structure that provides a permanent moisture barrier.
Perfect system compatibility for effective moisture barrier
The UZIN HydroBlock system offers the perfect solution for the restoration of damp substrates and the installation of design flooring, PVC or parquet. The combination of UZIN Hydro Primer 1 and 2 and UZIN Hydro LevelStar provides a reliable moisture barrier that works on cement screeds and concrete floors up to a residual moisture content of 98 % RH* (5 CM-%) and on heated cement screeds up to 85 % RH* (2.5 CM-%).
*According to TKB data sheet 18 "KRL method".
Why UZIN Renoplan®?
The UZIN Renoplan® system offers tailor-made solutions for your flooring projects. Whether you need to seal off moisture, renovate old subfloors with impact sound improvement or lay flooring on damp subfloors in new builds - we combine our years of expertise with perfectly coordinated products. Discover how you can now make your renovation and new-build projects even more efficient and successful.
Discover more products for substrate renovation with underfloor heating and decoupling - the UZIN Renoplan® system
Samba
Handy, very powerful single-disc sander with a powerful 1,700 W motor for sanding and brushing screeds and fillers as well as for wet cleaning and polishing hard floors.
Vacuclean 2
High-performance industrial vacuum cleaner for coarse dirt and dust with large filter surface
UZIN Foam Expansion Strip 8/100 Foam Expansion Strip
PE foam expansion strip with foil rag, 8 mm thick and 100 mm high
- height 100 mm, thickness 8 mm
- perfectly suitable for underfloor heating systems
- easy to cut because of the…
UZIN FT 15 Foam tape
Foam tape in compressed roll form
- Protective paper detaches easily from the reinforced adhesive strip
- adheres very well to smooth and sanded (primed) surfaces
- can simply be stuck…
UZIN HydroBlock-System Residual moisture barrier system
System for cementitious screeds, concrete in upper floors or concrete slabs wtihout rising moisture with moisture barrier effect
- resistant to alkaline moisture
- ready-to-use…
Discover renovation on a new level
The UZIN HydroBlock system offers you a quick and easy solution to seal off moisture in the substrate and create a reliable basis for laying floor coverings and parquet. Put your trust in UZIN, a company that not only offers you products, but also sophisticated solutions that make your installation of floor coverings and parquet efficient and sustainable or facilitate your work in new and old buildings on substrates with increased moisture.
UZIN is about more than just products - we offer you innovative solutions that set new standards in the trade. With our many years of expertise, we understand the challenges of floor installation like no other and continuously develop solutions that combine innovation and environmentally friendly technologies. As a result, we not only offer the highest quality, but also set the standard for sustainable renovations.
uzin. Perfectly coordinated
The UZIN HydroBlock system works superbly and reliably to seal off damp cement screeds or concrete.
Start your renovation now - Contact us
Find out how you can use the UZIN HydroBlock system to implement your renovation efficiently and successfully in the long term. Contact us for an individual consultation.
