Moisture-resistant installation systems for damp substrates - perfect for design flooring, PVC or rubber UZIN Renoplan®: Goal in sight, solution at hand
The renovation of old subfloors and subfloors in new buildings, especially when exposed to moisture, is a key challenge in the construction industry. Reliable and effective solutions are required, especially when it comes to creating a basis for the new floor covering on residual damp substrates. The UZIN Renoplan® system offers a sophisticated concept for this, which is specially designed for cementitious substrates and is suitable for a wide range of floor coverings.
HOW TO SUCCESSFULLY LAY DESIGN FLOORING, PVC OR RUBBER ON DAMP SUBSTRATES With UZIN PE 360 PLUS and the UZIN Renoplan® System
Substrate renovation often stands and falls with the correct handling of moisture-residual moisture, for example, is not uncommon. With UZIN Moisture Tolerant (MT) Technology, the UZIN Renoplan® system offers the perfect solution to ensure the durability of the floor covering by allowing moisture to pass through without damaging the covering and products. The system enables damage-free installation of suitable floor coverings without the need for an additional barrier.

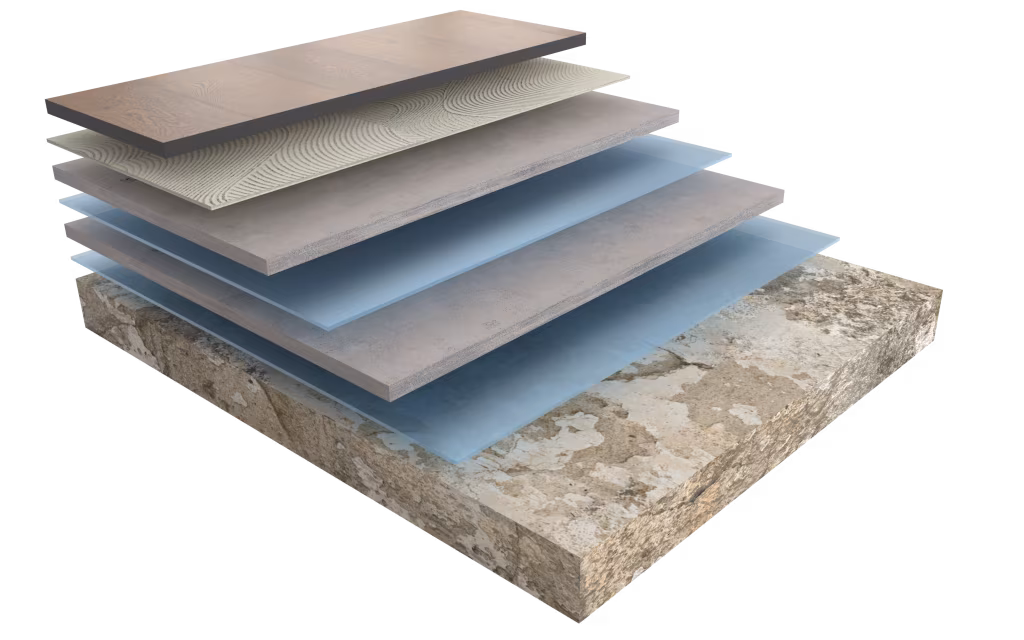

With the combination of UZIN PE 360 PLUS, the UZIN NC 182 repair compound, the UZIN NC 161 object filler and the moisture-resistant UZIN KE 25 universal adhesive, you can create an optimum system structure that is ready for covering in a short time. Simply perfectly matched: the UZIN Renoplan® system for renovation and new construction work, where there is often residual moisture in the newly laid screed.
- Design flooring
- Universal Adhesive
- UZIN KE 25
- Floor Smoothing Compound
- UZIN NC 161
- Primer
- UZIN PE 360 PLUS
- Repair Mortar
- UZIN NC 182
- Primer
- UZIN PE 360 PLUS
- Screed/ Concrete
Product information
UZIN KE 25 Universal Adhesive on Humid Substrates
Moisture-tolerant dispersion adhesive for all alkali and moisture tolerant floor coverings
- no need for moisture testing
- resistant against alkaline moisture
- universal application…
UZIN NC 161 Moisture-tolerant, commercial cement levelling compound
Self-levelling floor smoothing compound on all standard building substrates and in MT systems on damp, cementitious substrates for layer thicknesses from 3 - 20 mm
- no…
UZIN PE 360 PLUS Ready Mixed Primer
Moisture tolerant dispersion-based primer for absorbent substrates, screeds and concrete
- ready mixed
- sprayable
- tolerant against alkaline moisture
- rapid drying
- reduces the…
UZIN NC 182 Low-slump cementitious repair mortar
Moisture-resistant, low-slump and rapid repair mortar with reActivate effect for any range of thickness
- ready to accept floor coverings after 60 minutes*
- re-stirrable, longer…
UZIN PE 360 PLUS Ready Mixed Primer
Moisture tolerant dispersion-based primer for absorbent substrates, screeds and concrete
- ready mixed
- sprayable
- tolerant against alkaline moisture
- rapid drying
- reduces the…
Advantages of the system
- Ideal for damp substrates or concrete substrates
- Fast drying and ready for covering in a very short time
- High-strength filler for a stable and durable substrate structure
- Can be used universally for all common floor coverings such as PVC, rubber and designer floor coverings
- Easy application and high system compatibility for all UZIN products
Over 250,000 satisfied craftsmen in more than 25 countries rely on UZIN systems
Processing film: Laying design flooring safely on damp substrates with the UZIN Moisture Tolerant System from UZIN
Watch our video to see how easy it is to lay design flooring, PVC and rubber on damp subfloors.
Step by step to a moisture-resistant substrate The UZIN Renoplan® system in use
Step 1: Priming the substrate with UZIN PE 360 PLUS
Start by priming the substrate by applying UZIN PE 360 PLUSevenly and evenly over the entire surface. Avoid the formation of puddles. This reduces the absorbency of the substrate. Allow the primer to dry for about 30 minutes before continuing with the next steps.
Step 2: Levelling witht UZIN NC 182
Use the stable filler UZIN NC 182 to level out any unevenness on the substrate. This moisture-resistant compound dries quickly and forms a resilient base that is perfect for the subsequent layers.
Step 3: Priming the filler with UZIN PE 360 PLUS
Repeat the priming process on the UZIN NC 182 filler with UZIN PE 360 PLUS to ensure good adhesion.
Step 4: Now apply the self-leveling compound UZIN NC 161
This filler ensures a smooth and even surface that is also resistant to moisture. It provides an excellent basis for subsequent bonding.
Step 5: Bonding with UZIN KE 25
Finally, apply the moisture-resistant dispersion adhesive UZIN KE 25 to bond the floor covering to the prepared substrate. This adhesive is especially suitable for damp substrates and ensures a secure bond that keeps the floor covering permanently in place.
UZIN PE 360 PLUS
UZIN PE 360 PLUS is a moisture-resistant and ready-to-use dispersion primer specially developed for absorbent substrates such as cement screeds and concrete. With its fast drying and excellent adhesion, it forms the perfect basis for subsequent filling work.
Perfect system compatibility for reliable installation in damp conditions
The UZIN Renoplan® system offers you a perfectly coordinated solution for damp substrates and ensures that every floor covering can be laid in the face of demanding challenges. The combination of UZIN PE 360 PLUS, UZIN NC 182, UZIN NC 161 and UZIN KE 25 creates a secure floor covering installation on substrates with residual moisture.
Why UZIN Renoplan®?
The UZIN Renoplan® system has the solution. When laying design floor coverings on damp substrates, you can master renovations, even with demanding challenges. Because we pack our expertise for the floor laying trade into packages of coordinated products. Discover now how you can take renovations to a new level.
Simply renovate better - with the UZIN Renoplan® system.
Discover more products for substrate renovation with underfloor heating and decoupling - the UZIN Renoplan® system
UZIN PE 360 PLUS Ready Mixed Primer
Moisture tolerant dispersion-based primer for absorbent substrates, screeds and concrete
- ready mixed
- sprayable
- tolerant against alkaline moisture
- rapid drying
- reduces the…
UZIN NC 182 Low-slump cementitious repair mortar
Moisture-resistant, low-slump and rapid repair mortar with reActivate effect for any range of thickness
- ready to accept floor coverings after 60 minutes*
- re-stirrable, longer…
UZIN NC 161 Moisture-tolerant, commercial cement levelling compound
Self-levelling floor smoothing compound on all standard building substrates and in MT systems on damp, cementitious substrates for layer thicknesses from 3 - 20 mm
- no…
UZIN KE 25 Universal Adhesive on Humid Substrates
Moisture-tolerant dispersion adhesive for all alkali and moisture tolerant floor coverings
- no need for moisture testing
- resistant against alkaline moisture
- universal application…
Discover renovation on a new level
The UZIN Renoplan® system offers you everything you need for successful refurbishment and working on damp substrates.
At UZIN, you don't just get products - we offer you well thought-out solutions that make your renovation efficient and sustainable. With years of expertise, we know exactly what is important when it comes to flooring work. Thanks to our broad product range and sustainable solutions, we set standards in flooring installation. UZIN stands for quality that supports you in your renovation - and with environmentally friendly solutions that also impress in the long term.
uzin. Perfectly coordinated
With MT technology from UZIN in the UZIN Renoplan® system, I have a real alternative to PU products that also saves time.
Start your renovation now - Contact us
Find out more about how you can realize your project efficiently and sustainably with UZIN Renoplan® - contact us now and receive individual advice.
