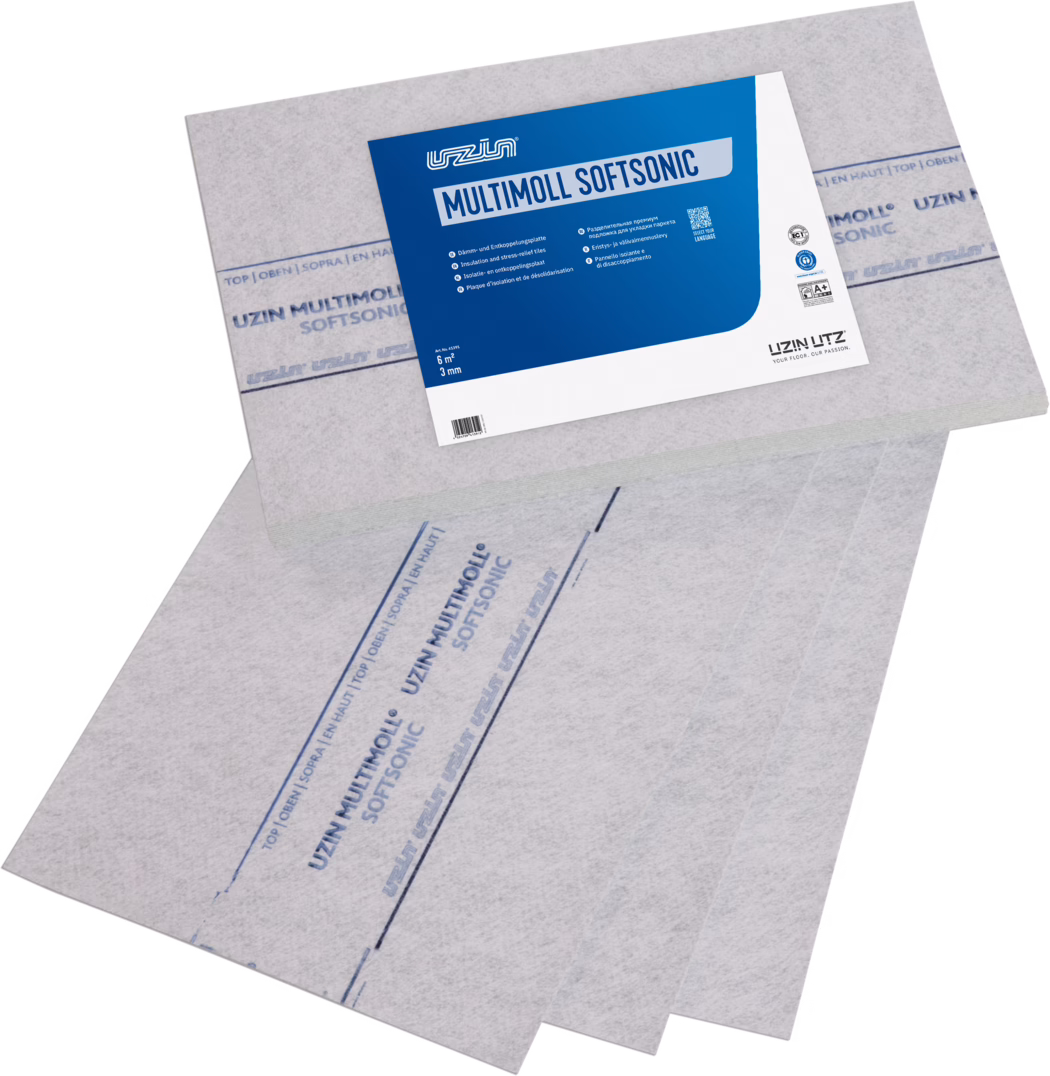

UZIN Multimoll Softsonic 3 mm Insulating and Stress-Relieving Underlay

Acoustically insulating, stress-relieving underlay with minimal thickness for bonded wood flooring

  • 3-in-1 function: decoupling, footstep and room sound insulation
  • easy to install
  • bridges cracks / hairline cracks
  • better walking and living comfort

Applications

Main application area:

  • decoupling
  • footstep sound insulation
  • creation of a substrate that is ready for covering


Extended application area:

  • increase of walking and living comfort
  • prior to floating installation of wood flooring or laminate

Technical data

*according to EN ISO 10 140-3:2010, tested with 2-layer wood flooring 11 mm, bonded with UZIN MK 250. See "Important Notes" **according to DIN 52 616 ***according to DIN 4102
Packaging

carton

Sizes

carton with 16 plates = 6 m²

Shelf life

min. 36 months

Color

white / grey

Tile format

0.5 m x 0.75 m = 0.375 m²

Area weight

approx. 3.0 kg/m²

Thickness

approx. 3 mm

Thermal transmittance value

17.036 W/m²K**

Heat transfer resistance

0.0587 m²K/W**

Minimum application temperature

15 °C at ground level

Impact sound reduction

approx. 14 dB*

Buidling material class

B2 ***

Ordering information

Article Shipping unit
UZIN Multimoll Softsonic 3 mm 41391
Pallet :
480
