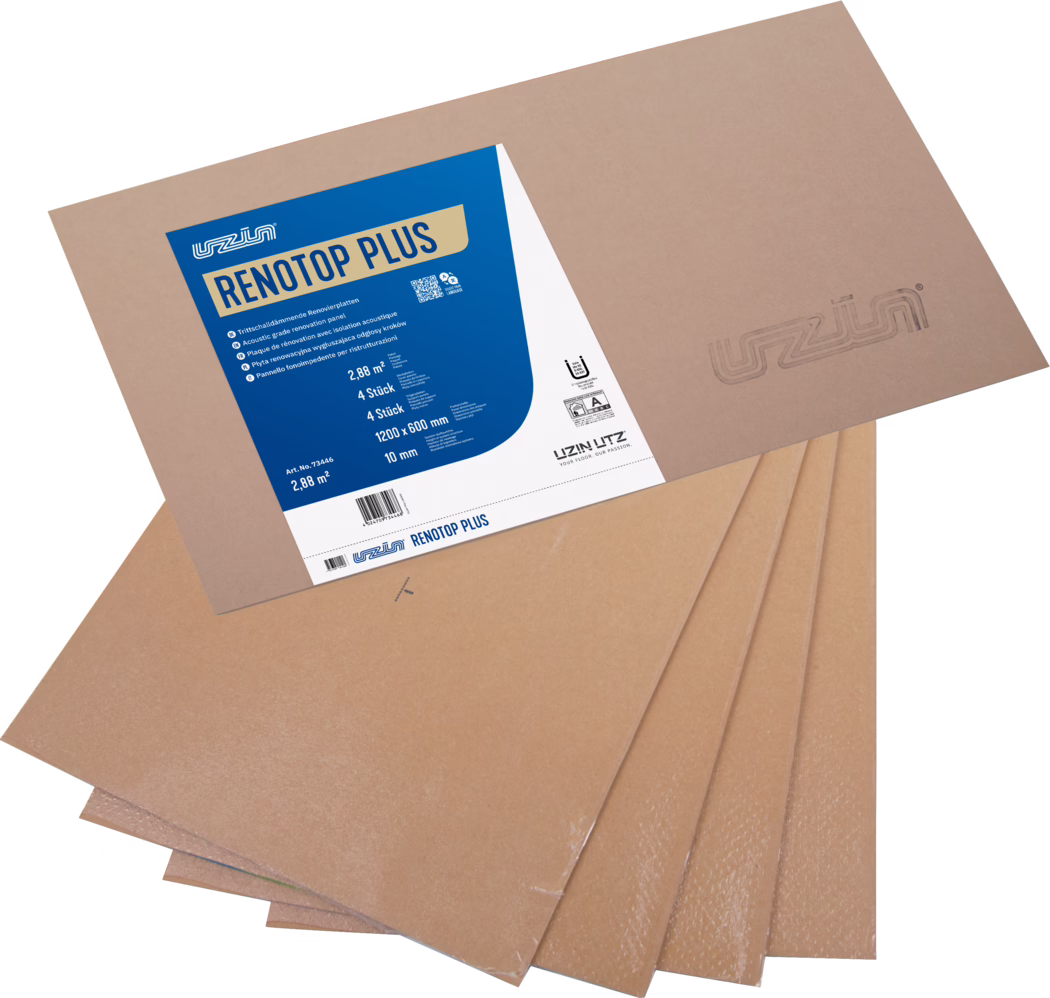

UZIN RenoTop PLUS Acoustic Grade Renovation Panel
Decoupling and footstep sound insulating subfloor system for many floor coverings
- approx. 10 mm total building height
- ready for covering directly after the installation
- even and adhesive friendly surface
- can be removed without residues
Applications
Main application area:
- creation of a substrate that is ready for covering
- footstep sound insulation
| Packaging |
boards |
|---|---|
| Sizes |
carton with 4 carrier and 4 cover boards = 2.88 m² |
| Shelf life |
min. 24 months |
| Color |
Carrier and cover plate: brown |
| Tile format |
0.6 m x 1.2 m = 0.72 m² |
| Area weight |
approx. 6.47 kg/m² |
| Thickness |
approx. 10 mm system building height |
| Thermal transmittance value |
12.35 W/m²K (U) |
| Heat transfer resistance |
0.081 m²K/W (R) ** |
| Minimum application temperature |
15 °C at ground level |
| Impact sound reduction |
approx. 22 dB* |
| Fire reaction |
Dfl-s1 *** |
| Article number | Article | Packsize | Shipping unit |
|---|---|---|---|
| 73446 | UZIN RenoTop PLUS | carton with 4 carrier and 4 cover boards = 2.88 m² |
Pallet :
21
|
