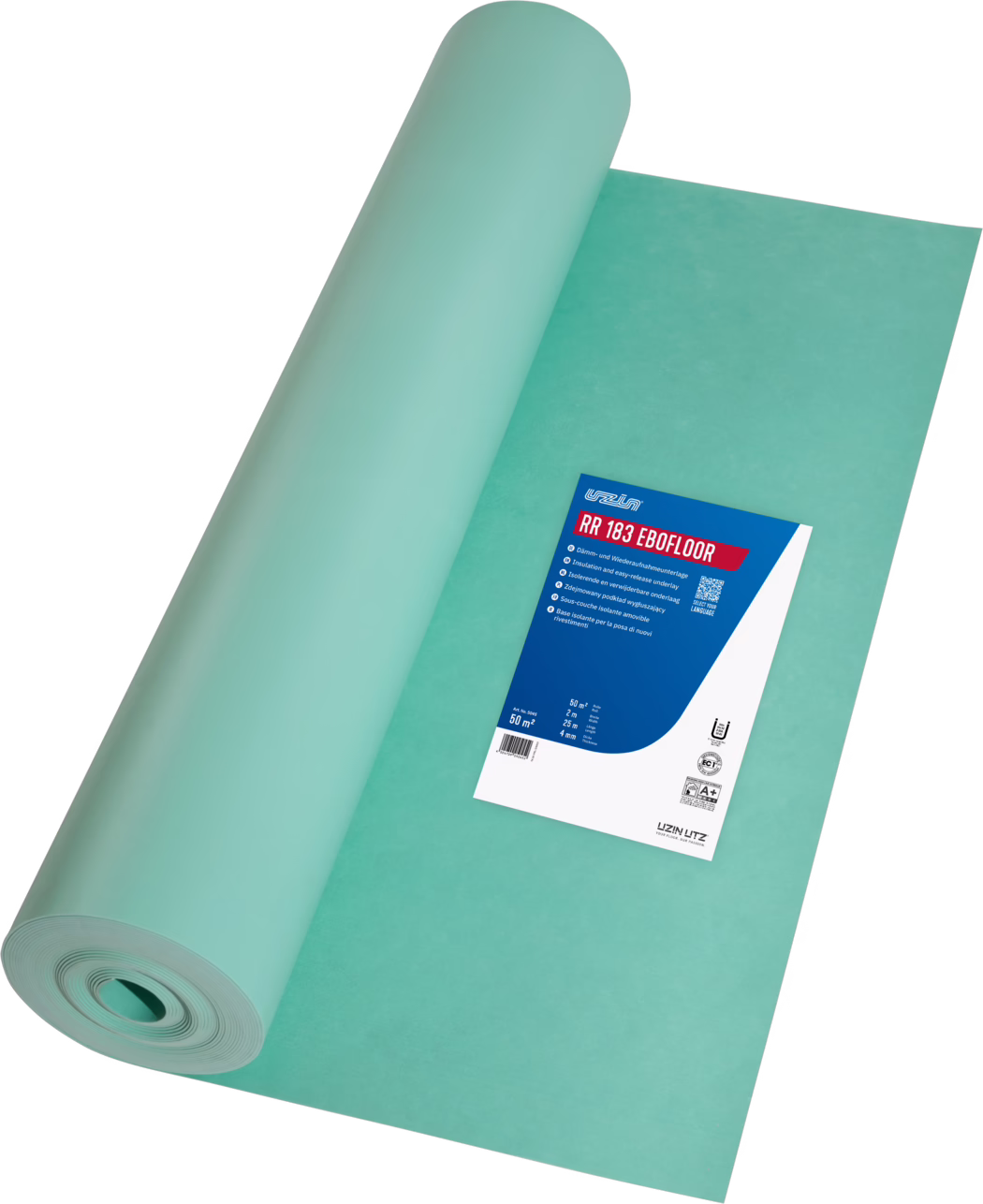

UZIN RR 183 Ebofloor Insulating and Easy-Release Underlay
Loose-laid and stabilising underlay for dimensionally stable textile, PVC and CV floor coverings in sheets
- loose-laid, lies flat
- good rigidity
- impact, sound and thermal insulation
- increases walking and living comfort
- easily removable
Applications
Main application area:
- improved walking and living comfort
- footstep sound insulation
Extended application area:
- thermal insulation
- easily removable
- decoupling
Downloads
Technical data
| Packaging | sheet in rolls |
|---|---|
| Sizes | 2.0 m x 25 m = 50 m² |
| Shelf life | min. 24 months |
| Color | light green |
| Roll weight | approx. 90 kg (netto) |
| Area weight | approx. 1.7 kg/m³ |
| Thickness | approx. 4 mm |
| Thermal transmittance value | 13.16 W/m²K (U)** |
| Heat transfer resistance | 0.076 m²K/W (R)** |
| Minimum application temperature | 15 °C at ground level |
| Impact sound reduction | approx. 26 dB* |
| Breite | 2 m |
Ordering information
| Article | Article number | Shipping unit |
|---|---|---|
| UZIN RR 183 Ebofloor / 50 m² | 5045 | Pallet : 6 rolls Roll : 50 m² |
